Model: VC-200VLB-AHD

MODEL	VC-200VLB-AHD
Chip	NVP2431H ISP processor
Sensor	1/4" CMOS sensor
Effective pixels	1920×1080
Video	AHD and CVBS standard
System	PAL/NTSC
Video output	1ch AHD HD/CVBS standard definition output(can switch)
Frame rate	PAL: 1920×1080@25fps NTSC: 1920×1080@30fps
Transmission distance max	Over 500M via coaxial cable 75-3
Day&night	IR-CUT auto switch
OSD menu	Optional
White balance	Auto/manual
BLC	Off/low/middle/high/very high
HLC	Support
Camera Features
IR LEDs Length	20m IR
Day/Night	Auto(ICR)/Color/B/W
Lens
Focal Length	3.6mm Fixed lens
GENERAL
Power Supply	DC12V 1A
Consumption	4W±10%
Working Environment	-20°C~+55°C/ Humidity 95% or less (non-condensing)
Transmission Distance	Over 500m via 75-3 coaxial cable
Material	Vandal-proof

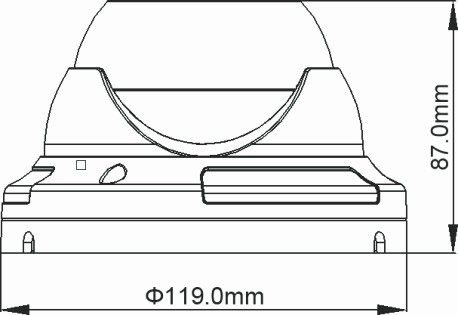

Dimensions	119L×87H(mm)
Weight	0.6 KG
